| KB8ZQZ's Syntor X retuning images page | |

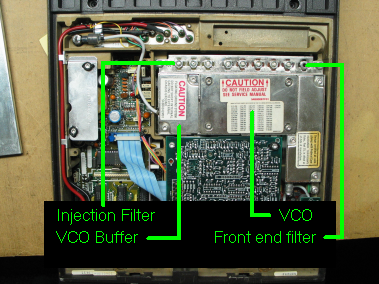

| Radio bottom view |
|

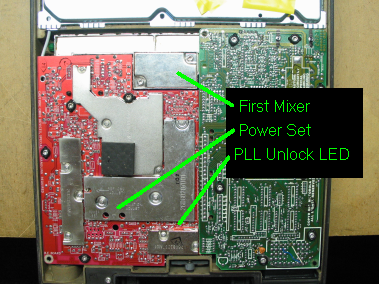

| Radio top view |
|

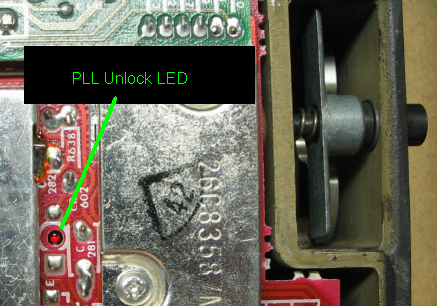

| PLL Unlock LED |
|

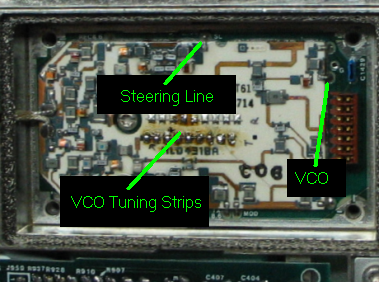

| VCO Board locations |
|

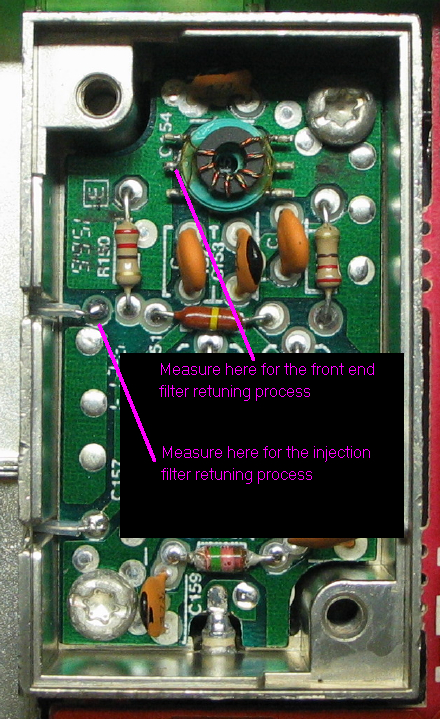

| First Mixer Board locations |
|

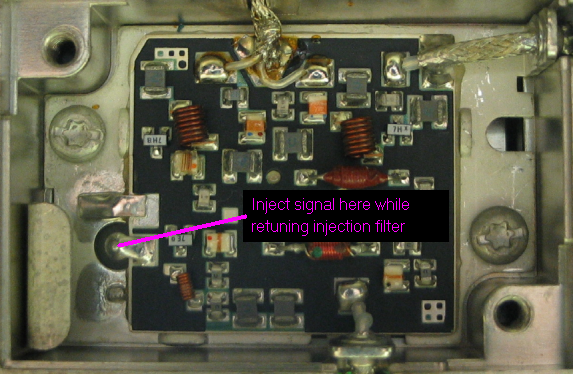

| VCO Buffer Board locations |
|
